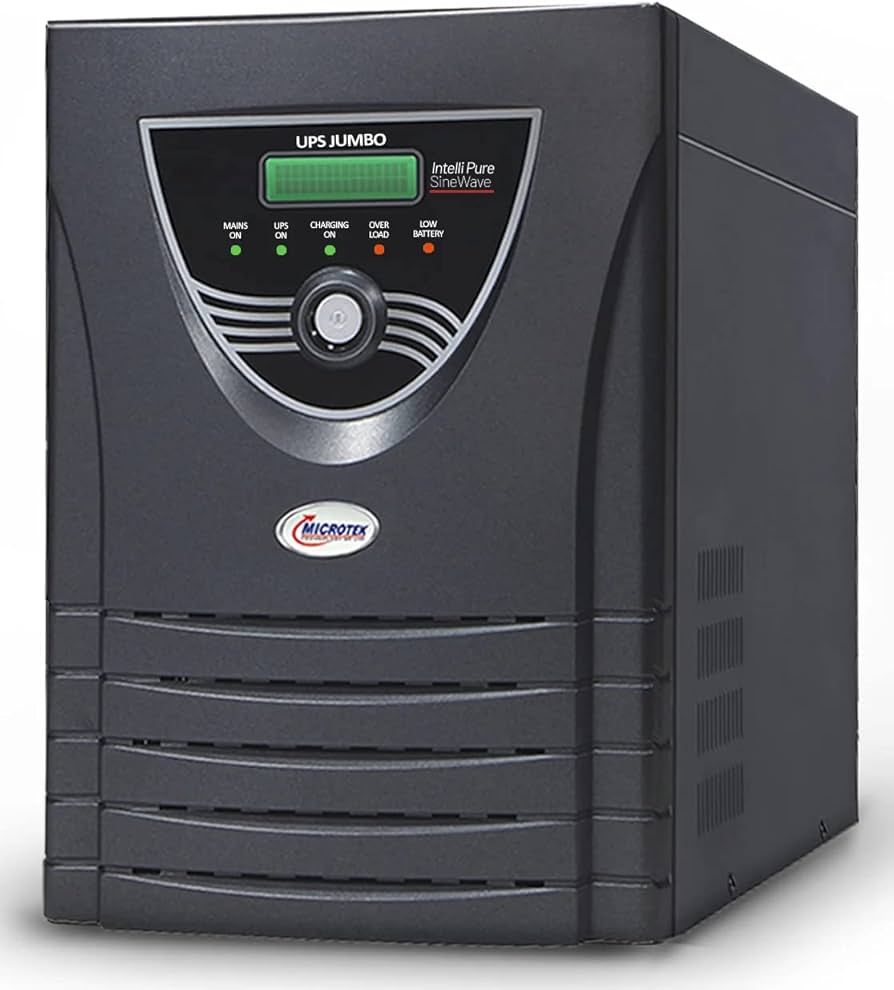

Microtek UPS JM SW 3500Â is DSC Based Intelli Pure Sinewave Jumbo UPS Model for Small Offices and Home Applications which ensures Noiseless, Safe and Efficient Performance. It is DSC based Intelligent Control Design using latest state-of-the art Technology. It also comes with Additional Features like Battery Selection Mode Switch for selecting Tubular, Standard & Local Battery for Quick Charging and Longer Battery Life with Enhanced Backup.
| Rated Capacity | 3.2 KVA / 36V |
| Output Power | 2560 Watts |
| Battery | 3 Battery System (36 VDC) |
| Wave Form | Pure Sine Wave |
| Warranty | 2 Year |
KEY FEATUREÂ
- DSC Based Intelli Pure Sine Wave UPS.
- LED & LCD Display Indications.
- PWM Controlled Multistage ATM (Auto Trickle Mode) Charging.
- Smart Overload Sense, Short Circuit and Over Temperature Protection.
- Safely suited to run Computers & Other IT Applications.
- Generator Compatible.
LED Display IndicationsÂ
- MAINS ON
- UPS ON
- CHARGING ON
- OVERLOAD
- LOW BATTERY
Technical SpecificationÂ
| INPUT | |
| Â Â INPUT VOLTAGE (Standard range) | Â 100V ~ 280V |
| Â Â INPUT VOLTAGE (Narrow Range) | Â 180V ~ 265V |
| OUTPUT | |
| Â OUTPUT VOLTAGE (Main Mode) | Â Same as INPUT |
| Â OUTPUT VOLTAGE (UPS Mode) | Â 220VÂ +Â 10% |
| Â Â OUTPUT WAVE FROM (Main Mode) | Â Same as INPUT |
| Â Â OUTPUT WAVE FROM (UPS Mode) | Â Pure Sine Wave |
| CHANGE-OVER | |
| Â SWITCHOVER (Mains>UPS / UPS>Mains) | Â AUTOMATIC |
| Â UPS TRANSFER TIME | Â <Â 15Â msec |
| TECHNOLOGY | |
| Â DESIGN | Â Micro Controller Based Design |
|  BATTERY CHARGING CURRENT |  17 Amps ± 3 Amps |
|  UPS OVERLOAD / UPS SHORT CIRCUIT |  ≥110% / ≥ 300% |
| Â BROWNS ON MAINS VOLTAGE | Â 100VÂ +Â Â 10V |
| Â EFFICIENCY (BATTERY MODE) | Â >80% |
| Â AUTO RESET FEATURE | Â YES |
| Â INPUT DC RANGE | Â 31.5 V Â ~ 42.6 V |
| Â AIR CONDITIONER TDR | Â Upto 1.0 Tons |
