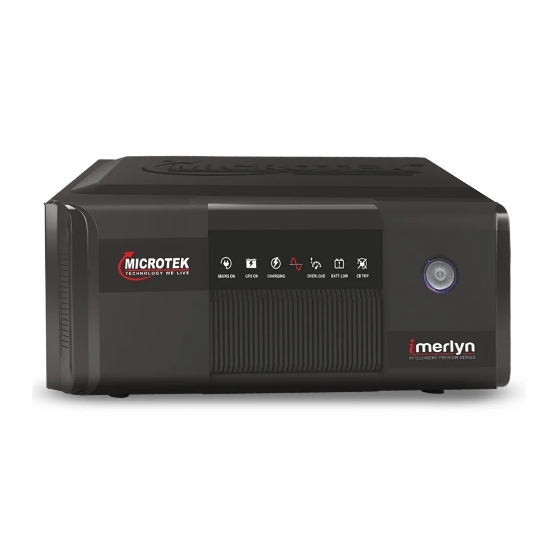

Microtek iMerlyn 1250 (12V) IPS/UPS Inverter
Microtek iMerlyn 1250 (12V) IPS/UPS Inverter - Image 2
Microtek iMerlyn 1250 (12V) IPS/UPS Inverter - Image 3
Microtek iMerlyn 1250 (12V) IPS/UPS Inverter - Image 4

Microtek iMerlyn 1250 (12V) IPS/UPS Inverter

Short Description:

  • Model:- iMERLYN 1250 (DG)
  • Brand:- Microtek
  • Capacity:- 1100 VA 12V/825 Watts Volt:- 12V.
  • Wave Form: TPZi Waveform Inverter.
  • Light, Fan, Tv, Computer, Server etc As Per (Calculation)
  • LED Display Indications.
  • Color: As given picture.
  • Made in India.
  • Inverter:- 24 Month’s warranty

Original price was: ৳ 13,500.00.Current price is: ৳ 12,500.00.

Add to compare
Add to wishlist
20 People watching this product now!

Description

iMERLYN Digital UPS Model 1250 (12V) DG

iMERLYN Inverter/Home Ups Series

MICROTEK iMERLYN UPS 1250 (12V) DG is a Micro Controller design based, LARGEST SELLING PREMIUM SERIES of Extended Backup External Battery UPS Systems. It comes with many user friendly features. It has Voltage Range Selection Switch and can be operated in Inverter Range from 90V~300V and UPS Range from 180V~260V.

Rated Capacity 1100 VA
Output Power 825 Watts
Battery 1 Battery System (12V)
Wave form TPZi Wave
Warranty 2 Years



KEY FEATURE

  • Micro controlled based Intelligent Control Design.
  • Display Indications (Status & Fault).
  • High Peak Current Handling Capability.
  • High Voltage Surge Protection.
  • Charging Mode, Load Type & Battery Type Selection Switches.
  • Re-Settable Circuit Breaker.
  • Smart Thermal Management Protection.



DISPLAY

  • MAINS ON
  • UPS ON
  • BATTERY CHARGING
  • OVERLOAD
  • BATTERY LOW
  • CB TRIP

Technical Information

MODEL   iMERLYN 1250 (12) DG



INPUT
  INPUT VOLTAGE (Standard range)  90V ~ 300V
  INPUT VOLTAGE (Narrow Range)  180V ~ 260V



OUTPUT
  OUTPUT VOLTAGE (Main Mode)  Same as INPUT
  OUTPUT VOLTAGE (UPS Mode)  200V ~ 230V + 10%
  OUTPUT FREQUENCY (UPS Mode)  50 Hz ± 0.1 Hz
  OUTPUT WAVE FROM (Main Mode)  Same as INPUT
  OUTPUT WAVE FROM (UPS Mode)  TPZi Wave form (Trape Zoidal waveform)



CHANGE-OVER
  SWITCHOVER (Mains>UPS / UPS>Mains)  AUTOMATIC
  UPS TRANSFER TIME  < 15 msec



TECHNOLOGY
  DESIGN  Micro Controller Based Design With IPS Technology
  BATTERY CHARGING CURRENT  Constant Charging Approx. 10% of the Rated Battery Current in AH
  UPS OVERLOAD / UPS SHORT CIRCUIT  110% / 300%
  BROWNS ON MAINS VOLTAGE  100V +  40V
  EFFICIENCY (BATTERY MODE)  >84%
  AUTO RESET FEATURE  YES
  OPERATING TEMPRATURE  -20° ~45° Degree Celsius
  WEIGHT (KG)  11.3 KG
  DIMENTION (LxWxH) in CM  38.7×39.6×20.7 CM
