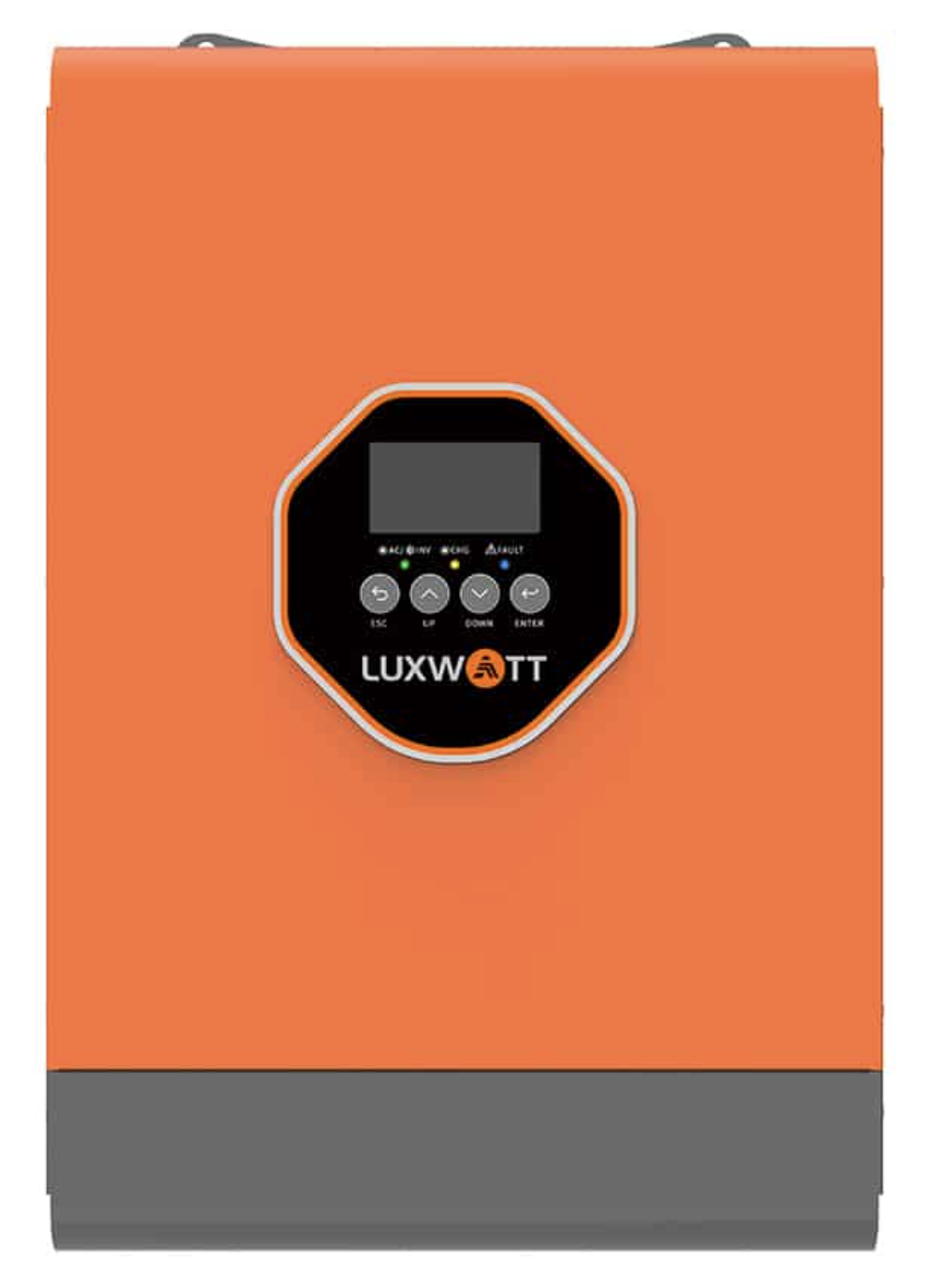

Luxwatt 3.6kW Single-Phase Solar Inverter 24V- Pure Sine Wave  is a premium solar inverter designed for home, small business, and remote area energy solutions. Combining grid power, solar power, and battery storage, this inverter ensures uninterrupted electricity for your daily appliances while maintaining high efficiency and energy savings. With pure sine wave output, smart battery charging, advanced protection systems, and optional WiFi monitoring, Luxwatt 3.6kW is a reliable, safe, and user-friendly energy solutionÂ
🔹 Key Features
1. Pure Sine Wave Output
Luxwatt 3.6kW delivers a pure sine wave AC output, which guarantees safe and stable electricity for sensitive devices such as TVs, computers, routers, refrigerators, and CCTV cameras. This ensures longevity and prevents device damage.
2. Hybrid Energy System
This inverter intelligently combines solar energy, grid electricity, and battery storage, allowing seamless switching between power sources. It optimizes energy use, reduces electricity bills, and ensures continuous power supply during outages.
3. Smart Battery Charging
Equipped with intelligent battery charging technology, the inverter prolongs battery life while ensuring efficient charge management. It supports Lithium and Lead-Acid batteries with voltage ranges of 21–30.2V d.c., and max charge current of 100A d.c.
4. Parallel Expansion
Luxwatt 3.6kW inverter supports parallel connection of up to 6 units, allowing you to scale up for higher energy requirements in commercial or large residential setups.
5. WiFi & Remote Monitoring (Optional)
Optional WiFi and remote monitoring features allow users to track power consumption, load status, battery levels, and input/output status from a smartphone or web portal in real-time.
6. Compact & Lightweight Design
The inverter is compact, lightweight, and easy to install, making it suitable for residential rooftops, offices, shops, clinics, schools, and hostels. Its LCD display provides clear operational status including load, input, and output data.
7. Advanced Protection
Luxwatt 3.6kW offers comprehensive protection features:
-
Overload protection
-
Over-temperature protection
-
Short-circuit protection
-
Safe battery charging
-
IP20 indoor use rating
These protections ensure both user safety and device longevity.
🔹 Technical Specifications
| Feature | Specification |
|---|---|
| Model | L-HOLLE-3K6 |
| AC Input Rated Voltage | 208/220/230/240V a.c., L+N+PE |
| AC Input Frequency | 50 Hz / 60 Hz |
| Rated Power | 3.6 kW |
| Wave Form | Pure Sine Wave |
| Inverter Efficiency (Peak) | >92% |
| Maximum AC Current | 15.6 A a.c. |
| Battery Type | Lithium / Lead-acid |
| Rated Battery Voltage | 24 V d.c. |
| Battery Voltage Range | 21–30.2 V d.c. |
| Max Charge Current | 100 A d.c. |
| MPPT Tracker / Strings | 1/1 |
| Max PV Array Power | 5 kW |
| Max DC Voltage | 500 V d.c. |
| MPPT Voltage Range | 40–450 V d.c. |
| Start-up Voltage | 60 V d.c. |
| Protection | Overload, Short Circuit, Over Temp |
| Parallel Function | Up to 6 units |
| Display | LCD Display (Load/Input/Output info) |
| Interface | RS485 / CAN / Dry Contact / WiFi |
| Protection Degree | IP20, Indoor only |
| Dimensions (W×H×D) | 335 × 470 × 125 mm |
| Weight | 8.1 kg |
| Operating Temperature | -10℃~+50℃ |
| Storage Temperature | -10℃~+60℃ |
| Humidity | 5%~95% Non-condensing |
