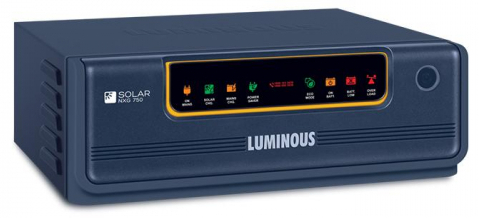

Solar Hybrid UPS with inbuilt charge controllers are perfect choice for harnessing solar powers from panels to drive your household electrical loads.
- Intelligent Solar Optimisation Technology – Maximises use of solar energy, charges from mains when required, saves 1.5-3 units per day
- Pure sine wave UPS with 80% efficiency
- Inbuilt charge controller for fast charging of batteries on solar
- Battery type selector to configure charging currents as per connected battery
- NXG+ range is a hybrid UPS range that intelligently uses grid and solar power. With ability to operate in a wide voltage range, NXG+ is the ideal starter solar solution for homes.
ISOT Technology
NXG+ Solar UPS uses Intelligent Solar Optimization Technique (ISOT). Once the batteries get charged, it cuts off grid power and supplies electricity through solar panels thus maximizing solar energy usage. This helps you save up to 3 units of electricity per day. Substantial money savings in the long run.
Fast charging through i-Charge Technology
If there are long power cuts in your area, you can use the i-charge fast charging mode for charging batteries in a short time when grid power is available. Note that when i-Charge is switched ON, Power saver mode is deactivated and the ups takes higher charging current from the grid. To activate this mode, use the i-charge ON/OFF switch at the back.
ECO and UPS mode
The NXG+ Solar UPS can run on two modes – UPS and ECO mode. UPS mode should be selected when the user wants to run computers. In the UPS mode, the system switches to battery backup if the mains voltage drops below 180 V.
Safety and Protection
Luminous NXG+ comes with many safety features built in. It continuously monitors the health of your batteries and protects them against deep discharge, overcharge and short-circuit. The Main fuse protects against excessive current thereby protecting your sensitive appliances.
Pure Sine Wave
Its pure sine wave output ensures safety and noiseless operation of connected appliances.
| Model | NXG+ 750 |
| Range Name (Solar) | NXG+ |
| VA Rating | 400 VA |
| Output Waveform | Sine Wave |
| Warranty | 24 months |
| Net weight (kg.) | 9.3 |
| No. of 12V Batteries in Series | 1 |
| Technology (Solar) | With Battery |
| Maximum Power Voltage Vmp (V) | 17V-19V |
| Max. supported panel power (Wp) | 400 |
| Nominal battery bank voltage | 12V |
| Input Voltage Range (Voc) | 19V-25V |
| Manufactured By | Luminous Power Technologies Pvt. Ltd |
| Contents of Pack | 1 N Inverter, 1 N Manual |
| Product Dimensions (L*W*H) | 37.5*31.5*13.5 CM |
| Application Area | Homes and Small Shops |
