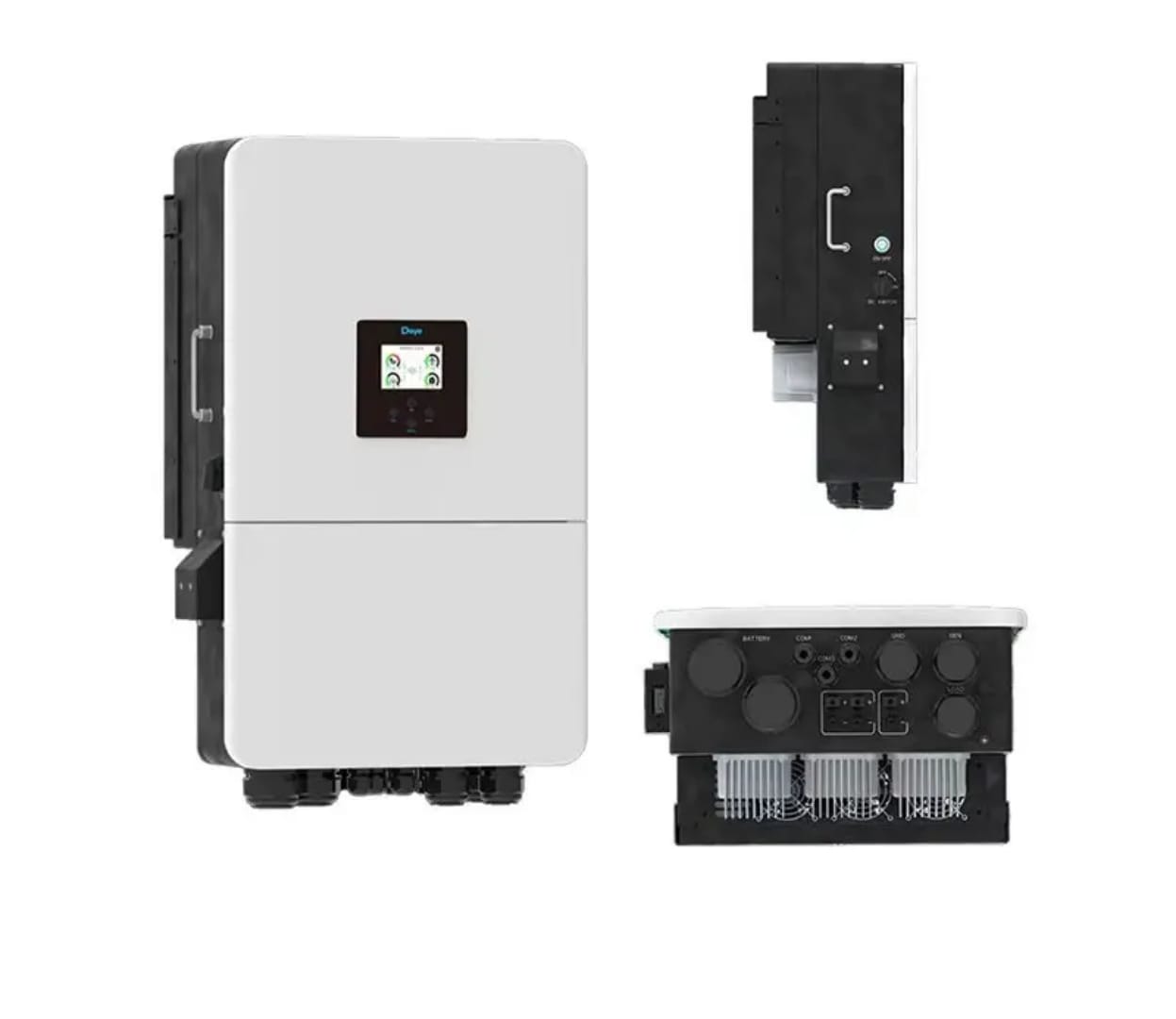

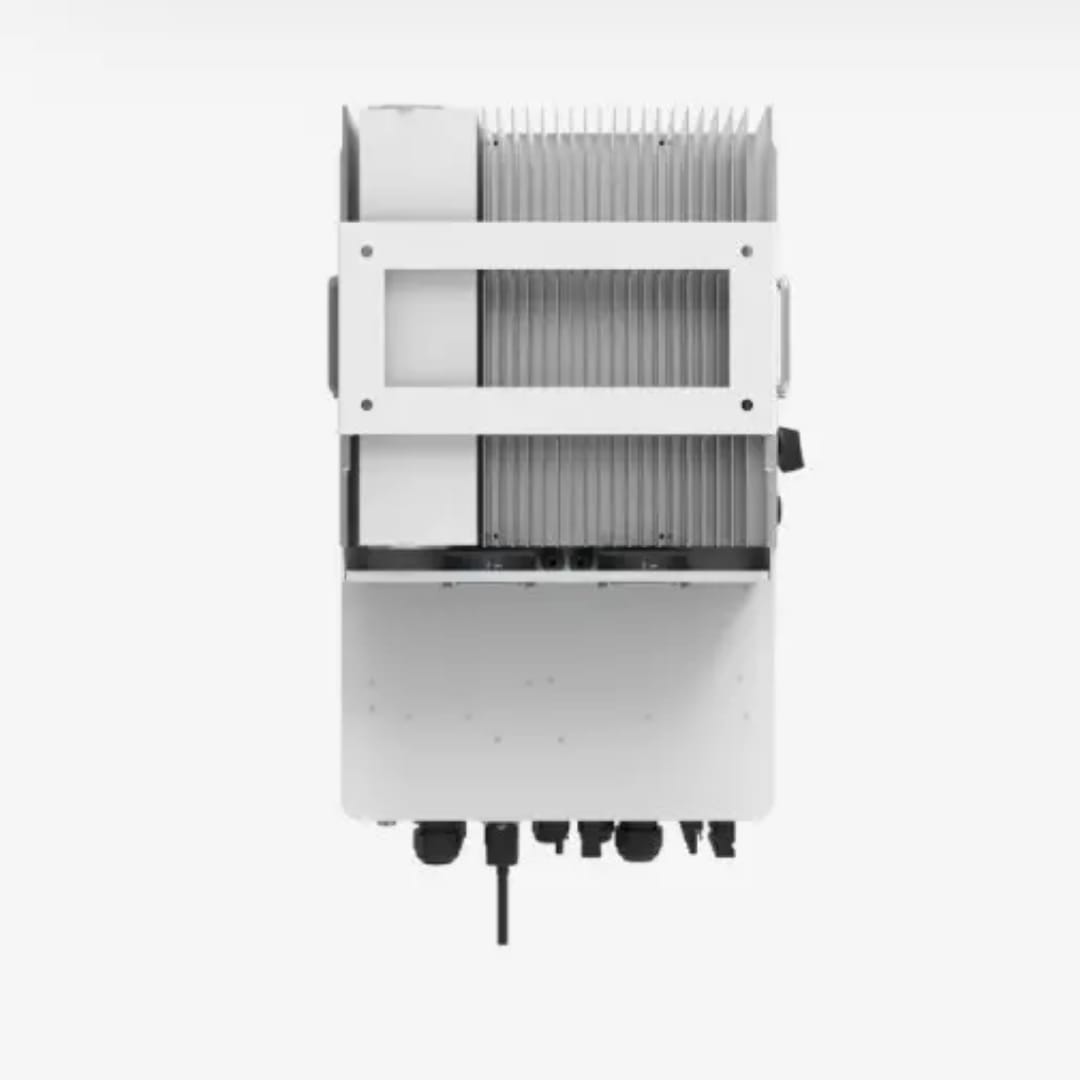

Deye 6KW Hybrid Solar Inverter

SKU: SB012330
  • Brand & Model: Deye | SUN-6K-SG04LP1-EU-SM2 | Single Phase True Hybrid Inverter | On-Grid & Off-Grid
  • Rated Power: 6kW | Max Efficiency: 97.6% | Euro Efficiency: 97.0% | MPPT Efficiency: 99.9%
  • PV Input: Max Solar Input: 10kW | Max PV Voltage: 600V | MPPT Range: 150–425V | Dual MPPT (2×18A)
  • Battery: Li-ion & Lead-Acid Compatible | Voltage Range: 40–60V | Max Charge: 135A | Max Discharge: 175A | 6 Charging/Discharging Time Periods
  • AC Output: Rated: 6kW / 6600VA | Output Voltage: 220/230V | Peak Off-Grid Power: 2× Rated (10s) | Max AC Pass-through: 100A
  • Communication & Monitoring: RS485 / RS232 / CAN | WiFi / Bluetooth / GPRS / Optional 4G | Remote Shutdown & Firmware Update Support
  • Protection & Build: IP65 | Intelligent Air Cooling | Parallel: Up to 16 Units | Dimensions: 366 × 589 × 527 mm | Weight: 26.8 kg
  • 🛡️ Warranty: 5-Year Warranty (excludes burns & physical damage)
  • 🚚 Delivery:
    • Inside Dhaka: Delivered within 1–2 business days.
    • Outside Dhaka: Delivered within 2–3 business days.

Note: Delivery time may vary depending on courier service availability and delivery location.

Original price was: ৳ 140,000.00.Current price is: ৳ 135,000.00.

Add to compare
Add to wishlist
17 People watching this product now!

Description

Deye 6KW Hybrid Solar Inverter in Bangladesh

The Deye 6KW Hybrid Solar Inverter (SUN-6K-SG04LP1-EU-SM2) is gaining popularity in Bangladesh for its powerful performance, reliable backup support, and seamless integration with both grid and solar systems. As electricity demand and fuel prices continue to rise, this inverter offers an efficient solution for homeowners and businesses seeking energy independence.

The Deye SUN-6K-SG05 LP1-EU-SM2 is a powerful 6kW hybrid solar inverter, compatible with both lithium-ion and lead-acid batteries. It features dual MPPTs, a wide battery voltage range (40–60V), and intelligent air cooling for efficient performance. With up to 97.6% max efficiency and advanced protection systems, this inverter ensures reliable and safe energy conversion. Ideal for both on-grid and off-grid solar systems.

Remotely shutdown function & Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

  • Colorful touch LCD, IP65 protection degree
  • AC couple to retrofifit existing solar system
  • Max. 16 pcs parallel for on-grid and off-gridoperation; Support multiple batteries parallel
  • Max. charging/discharging current of 140A
  • 6 time periods for battery charging/discharging
  • Support storing energy from diesel generator

📦 Deye 6KW Hybrid Inverter (SUN-6K-SG05 LP1-EU-SM2) – Technical Specification

🔋 Battery Input Data

Parameter Specification
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range 40~60 V
Max. Charging Current 135 A
Max. Discharging Current 175 A
Charging Strategy (Li-ion) Self-adaption to BMS
Number of Battery Inputs 1

☀️ PV (Solar) Input Data

Parameter Specification
Max. PV Input Power 10000 W
Max. PV Input Voltage 600 V
Start-up Voltage 150 V
MPPT Voltage Range 150~425 V
Rated PV Input Voltage 370 V
Max. Operating PV Input Current 2×18 A
Max. Short Circuit Current 2×27.2 A
Number of MPPT Trackers 2
Strings per MPPT Tracker 1+1

⚙️ AC Output (Grid) Data

Parameter Specification
Rated Output Active Power 6000 W
Max. AC Apparent Power 6600 VA
Rated AC Output Current 26.1 A
Max. AC Input/Output Current 31.9 / 30.5 A
Max. Continuous AC Pass-through 100 A
Peak Power (Off-grid) 2 × rated power (10 seconds)
Power Factor Adjustment Range 0.8 Leading ~ 0.8 Lagging
Rated Output Voltage / Range 220/230 V (180~270 V)
Grid Frequency / Range 50/60 Hz (4555 Hz / 5565 Hz)

📊 Performance & Protection

Parameter Specification
Total Harmonic Distortion <3% (of nominal power)
DC Injection Current <0.5% In
Max. Efficiency 97.6%
Euro Efficiency 97.0%
MPPT Efficiency 99.9%
Protection Features DC Reverse, Overcurrent, Over/Under Voltage, Ground Fault, Arc Fault, Surge, Insulation, etc.

🌐 Communication & Monitoring

Parameter Specification
Communication Interface RS485 / RS232 / CAN
Monitoring Options WiFi / GPRS / Bluetooth / 4G (Optional)

🌡️ Environment & Installation

Parameter Specification
Operating Temperature Range -40°C to +60°C (>45°C Derating)
Relative Humidity 0~100%
Max. Operating Altitude 4000 m
Noise Level <30 dB
Protection Level (IP Rating) IP65
Inverter Topology Non-isolated
Over Voltage Category OVC II (DC), OVC III (AC)
Cooling System Intelligent Air Cooling
Dimensions (W×H×D) 366 × 589 × 527 mm
Net Weight 26.8 kg

✅ Certifications & Warranty

Parameter Specification
Warranty 5 Years (WithOut Burn Case)
Certifications IEC 61727, IEC 62116, EN 50549, VDE 0126, EN 62109-1/-2, EN 61000-6-1/-2/-3/-4





  • Power Capacity: 6kW

  • Max Solar Input: Up to 10kW

  • Battery Charge/Discharge Current: 135A / 175A

  • Backup Output: 6kW (Off-grid support available)

  • Efficiency: Up to 97.6%

  • MPPT: Dual MPPT with 99.9% tracking efficiency

  • Display & Monitoring: WiFi / Bluetooth / Optional 4G, Mobile App Support
